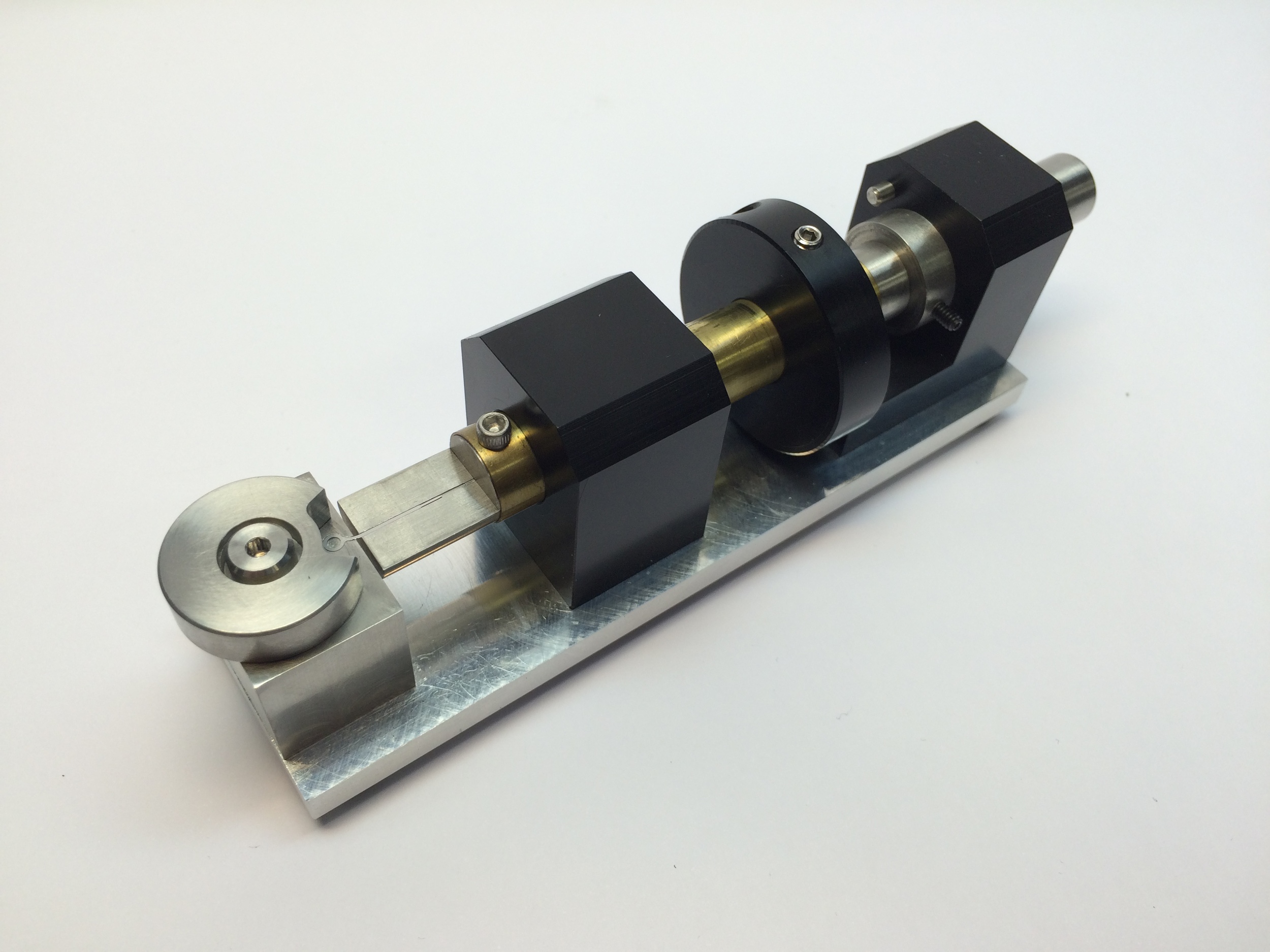

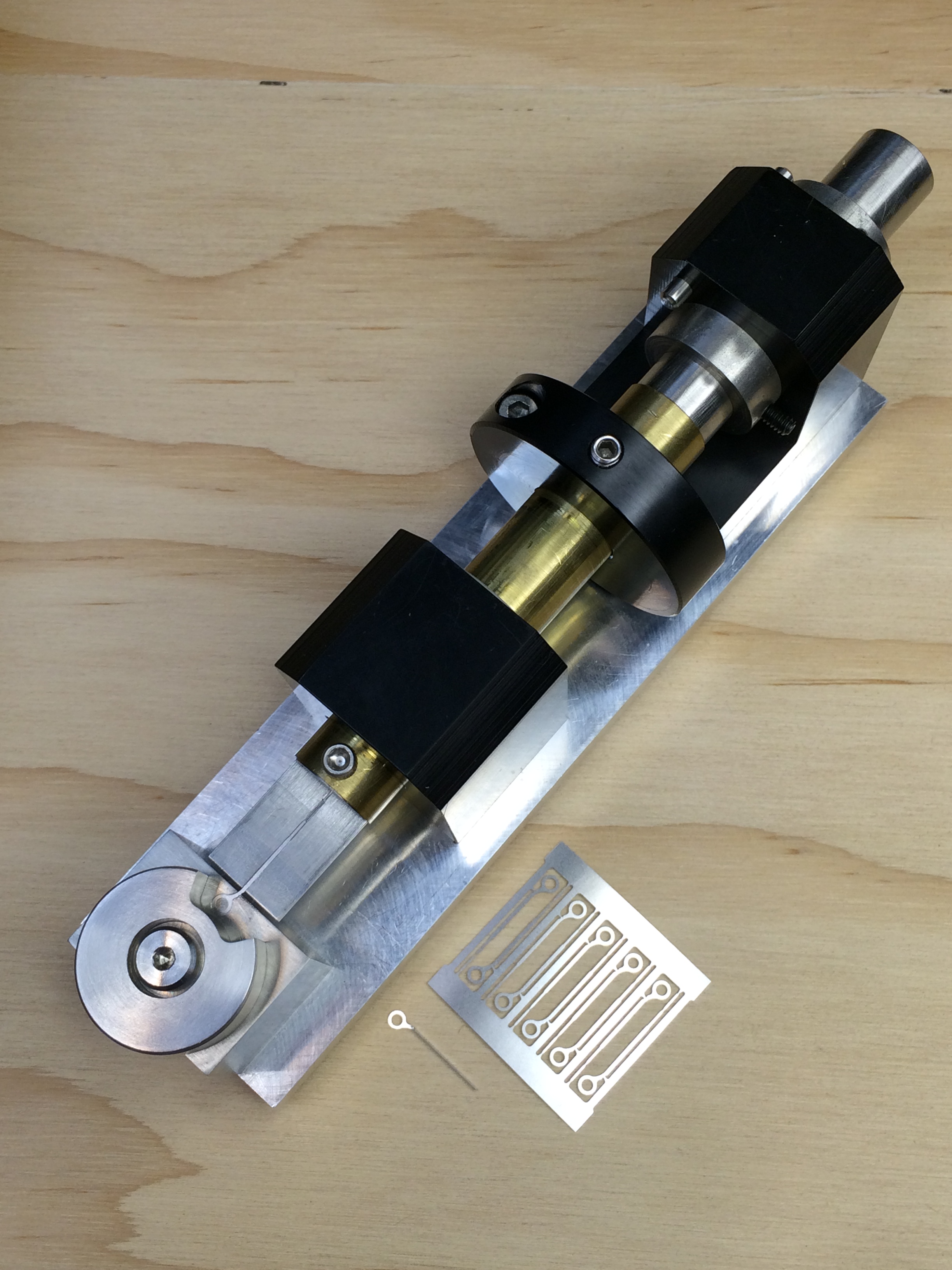

Contact Ring Terminal Twist Fixture

Designed and fabricated fixture to implement 90 degree twist in miniature stainless steel ring terminals for use in laparoscopic vessel sealer.

+

Photo Etched Ring Terminals

Designed 50 up panelized terminal coupon for volume production.

0.008" 300 series stainless steel

+

Tight Tolerance Positioning Fixture

6"X6"

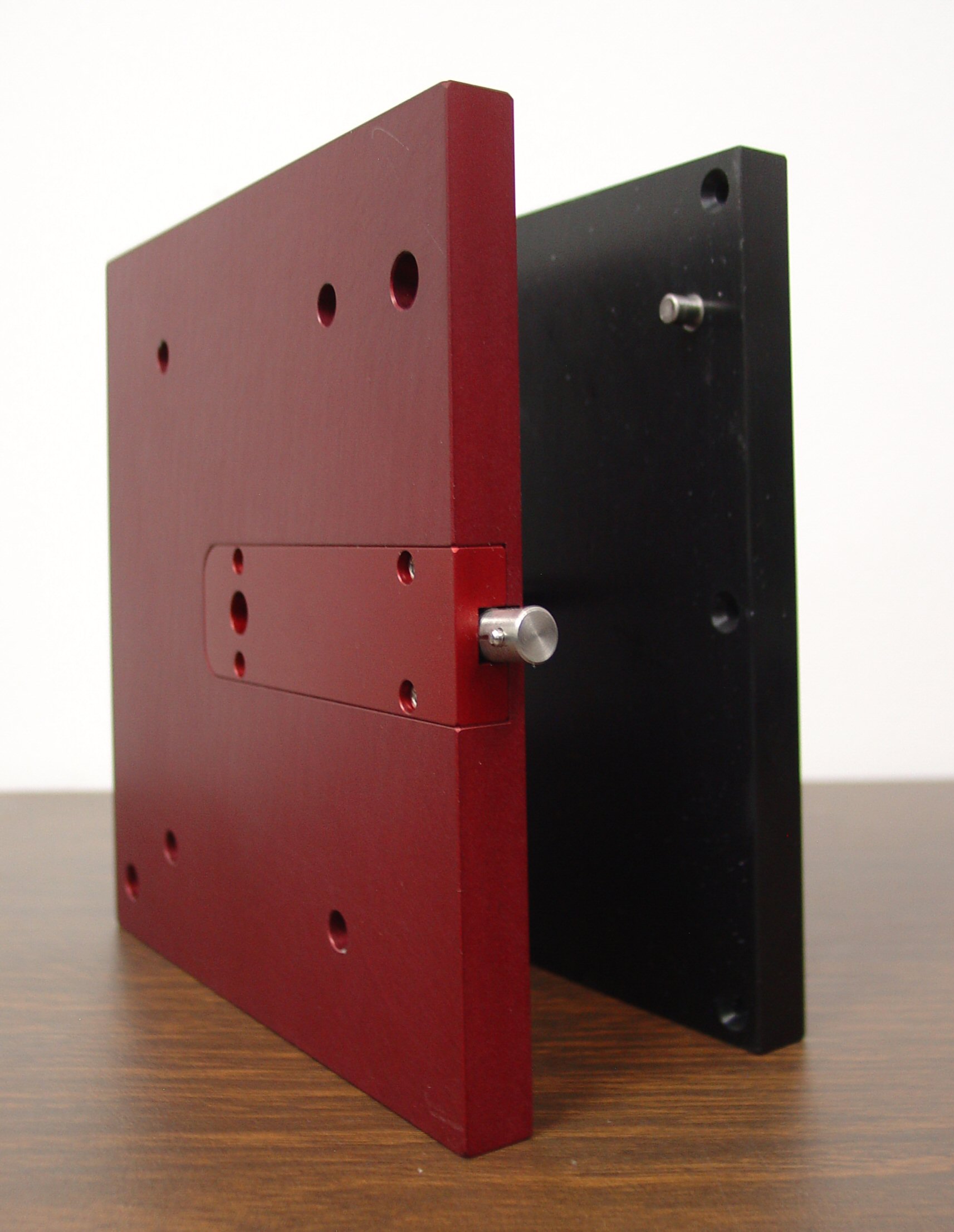

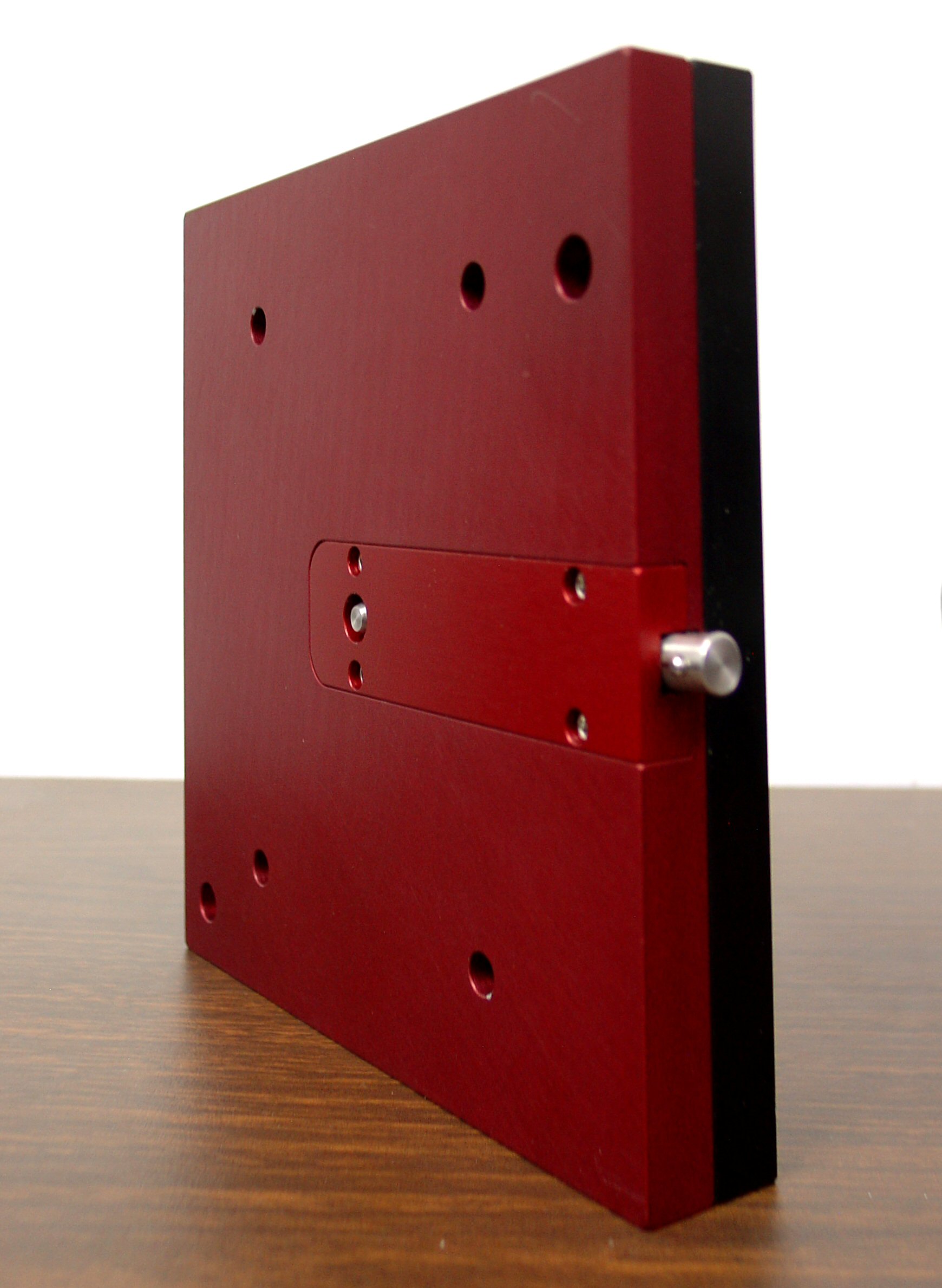

Anodized Aluminum Tool Plate

CNC Machined

+

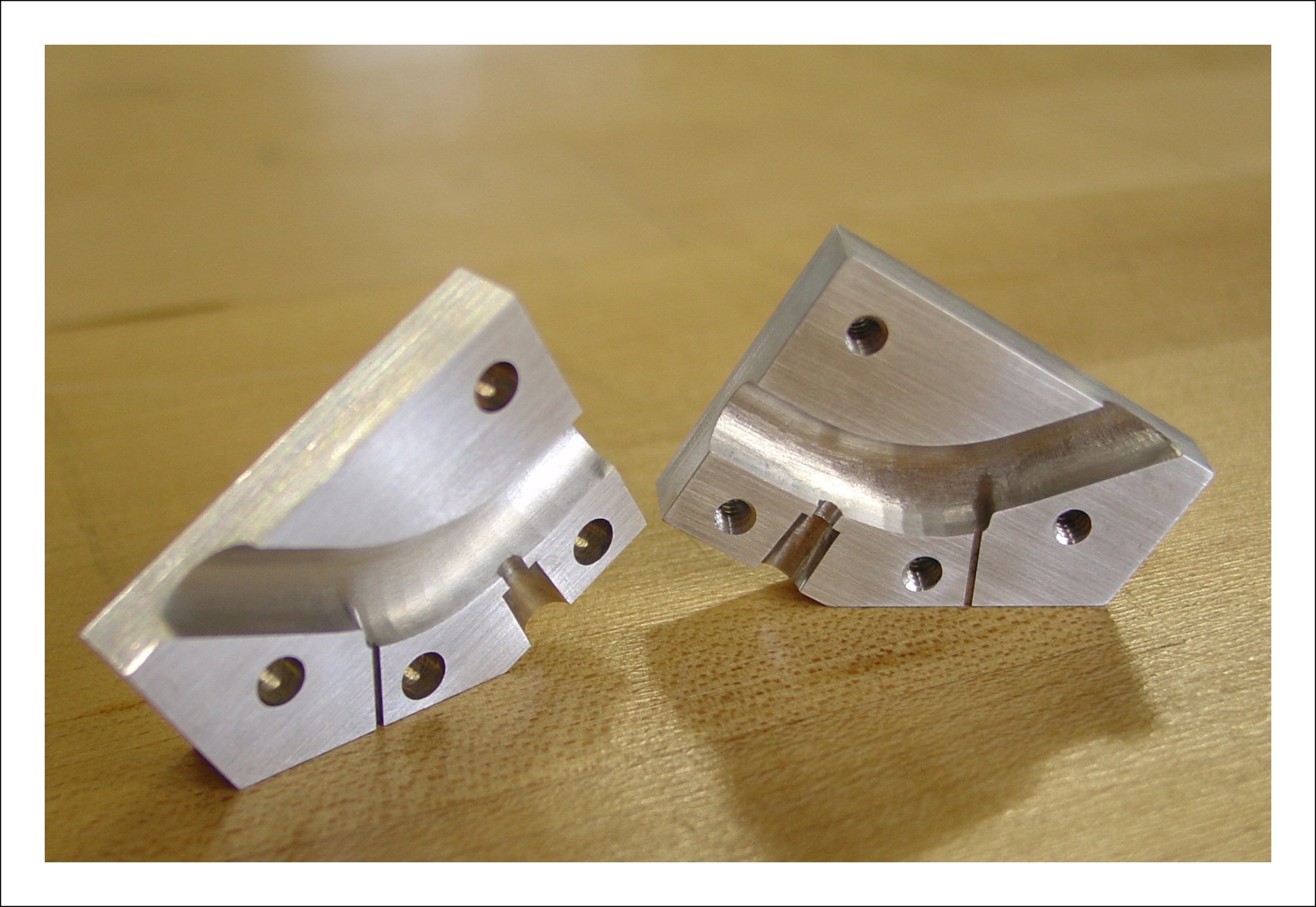

Aluminium Over-Mold Mold

6061-T6 Aluminium Alloy

CNC Machined

+

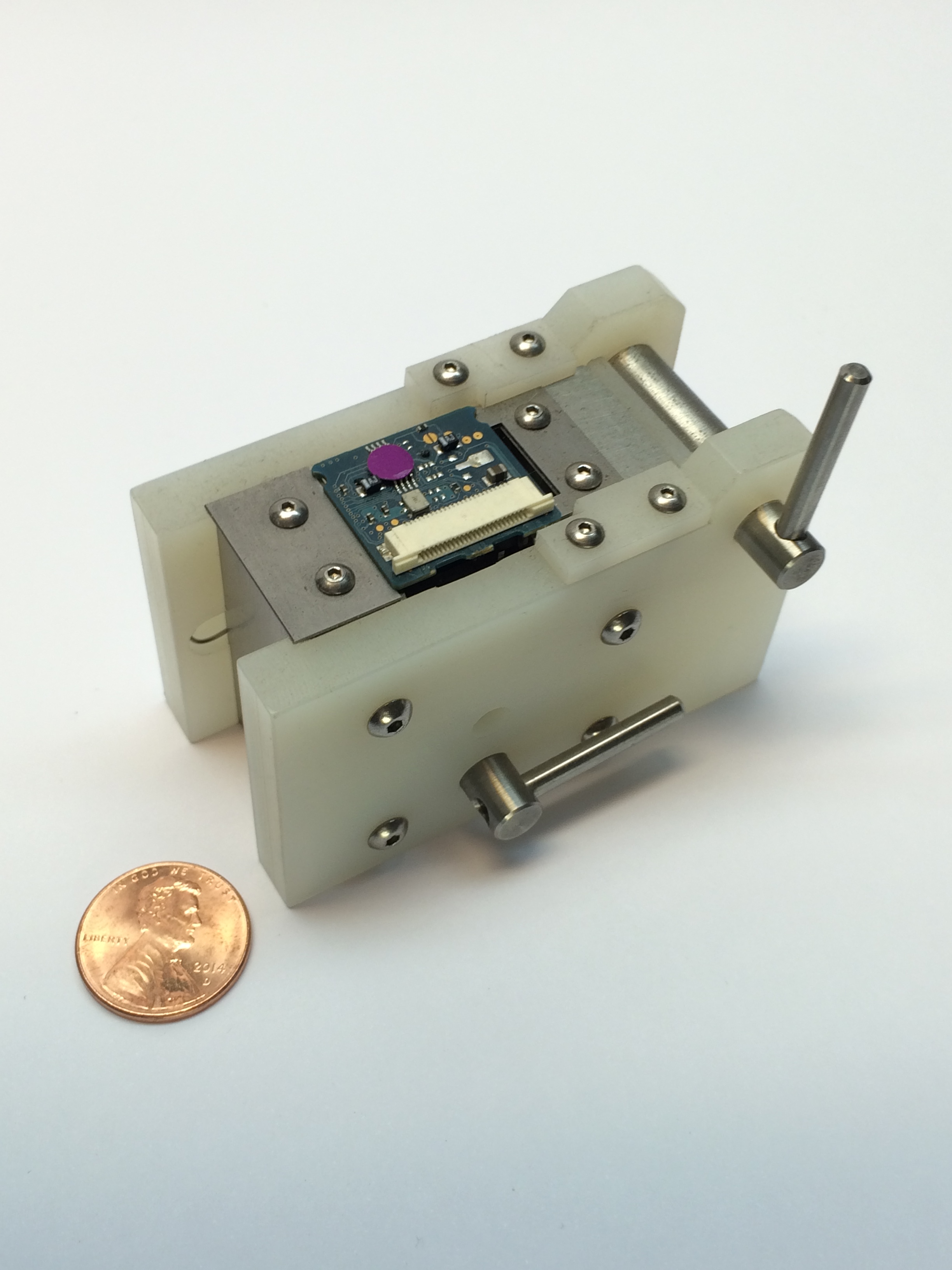

Near Eye Micro Display Illuminator Removal Fixture

Designed and fabricated cam operated tool to safely remove snap-on illuminator housing from microdisplay assembly

+

without damaging snap features, enabling reuse of components.

Nylon / Stainless Steel

+

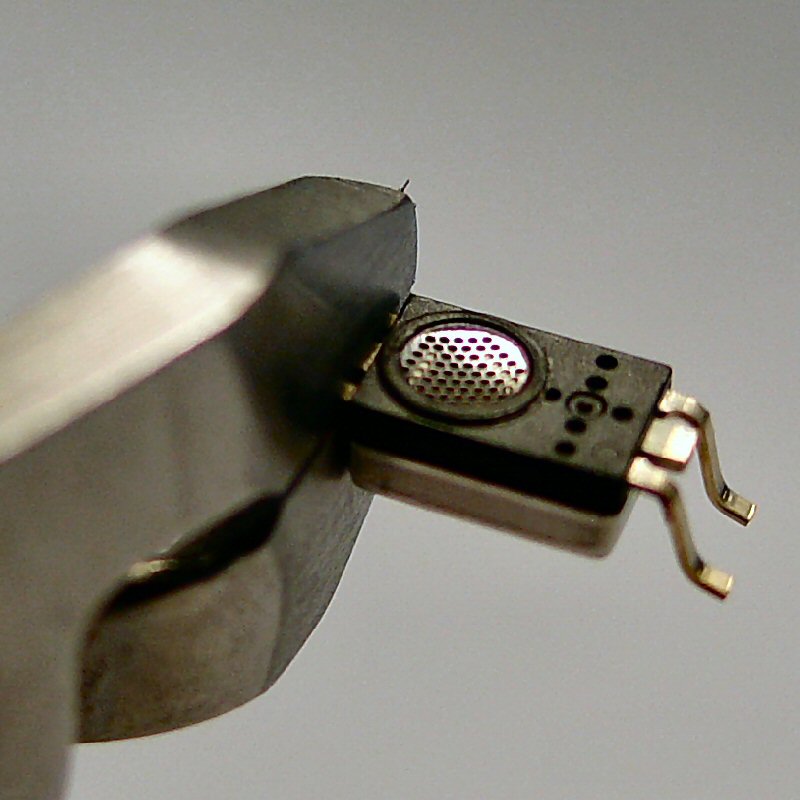

Custom Tab Removal Tool for Ultrasonic MEMS Package

Tool Steel

Machined

+

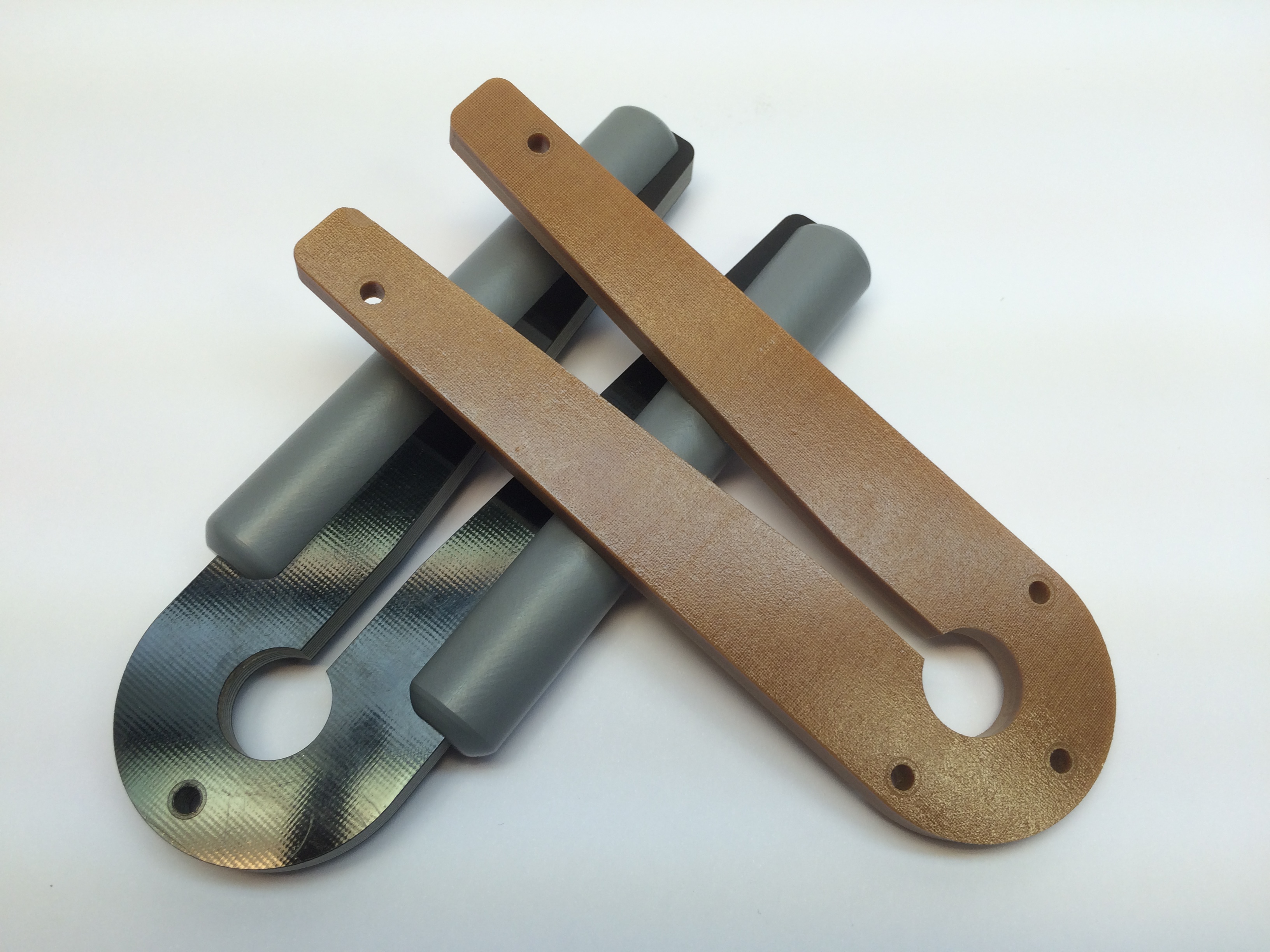

Flex Wrenches

2"X5.5"

Garolite FR4 and PVC

+

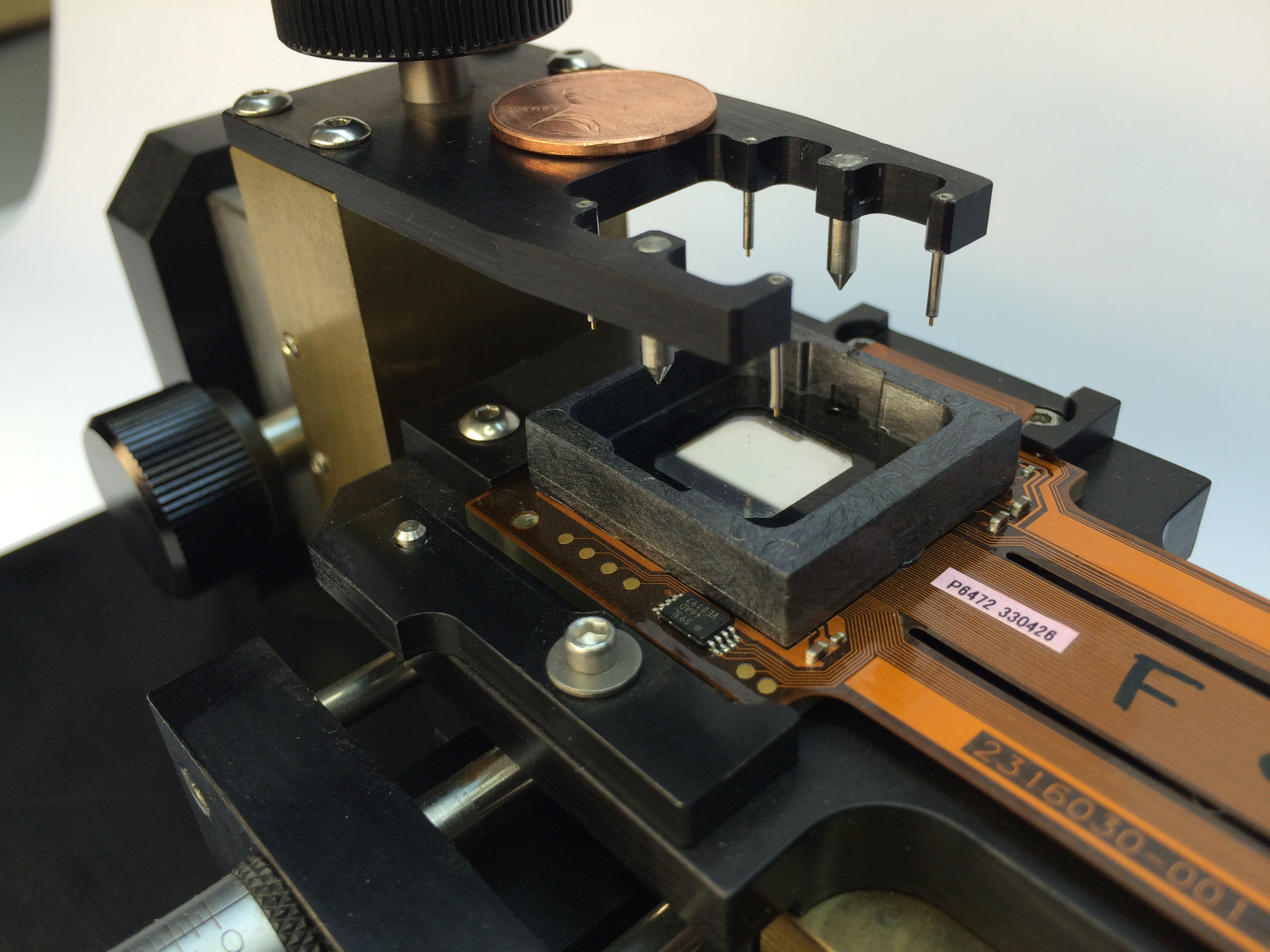

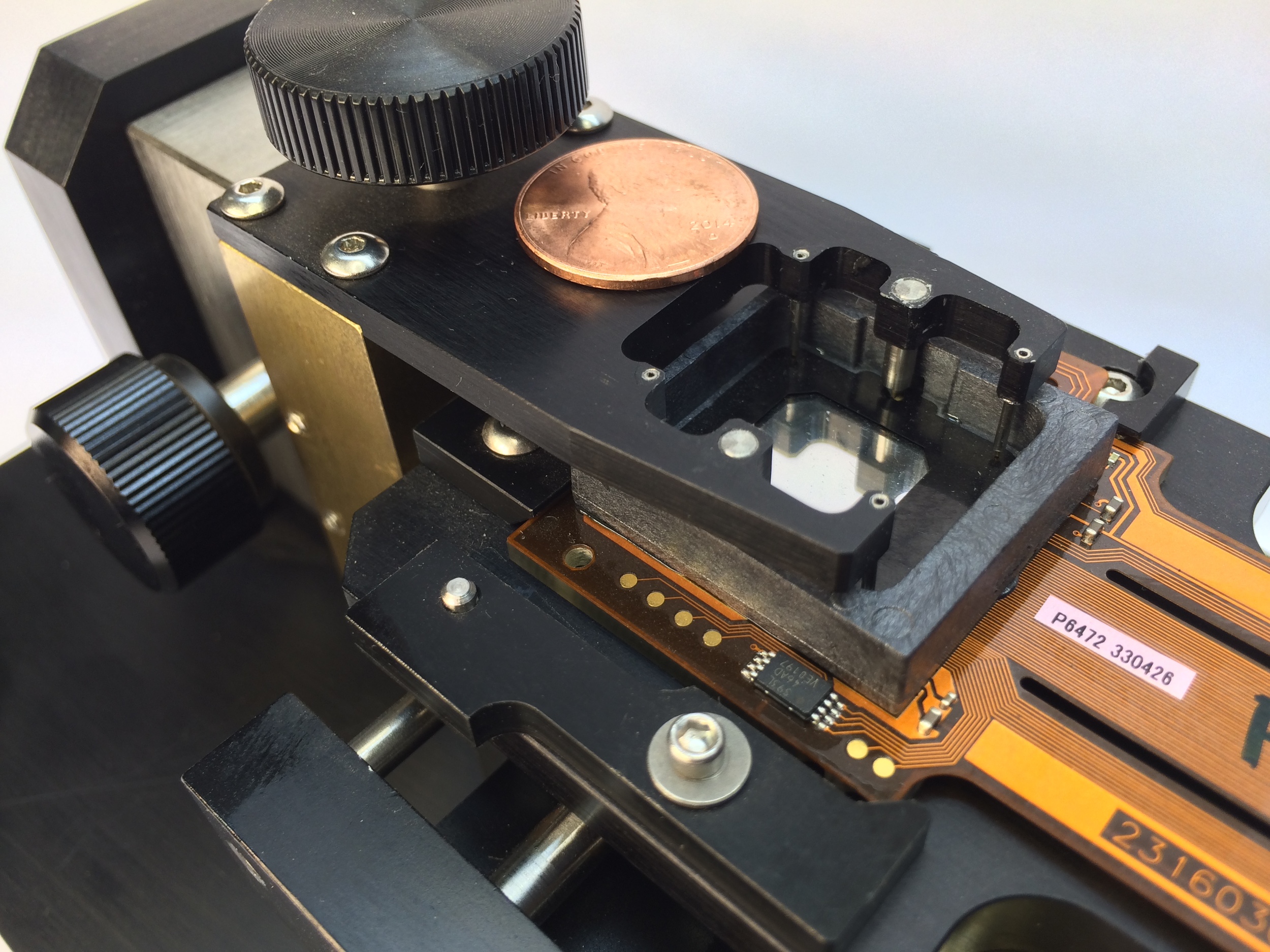

Assembly Fixture for Precision Aperature Placement on LCOS Spacial Light Modulator Panal

Allows operator to position aperture over LCOS panel within plus or minus one pixel X, Y and Theta under high powered video microscope system.

+

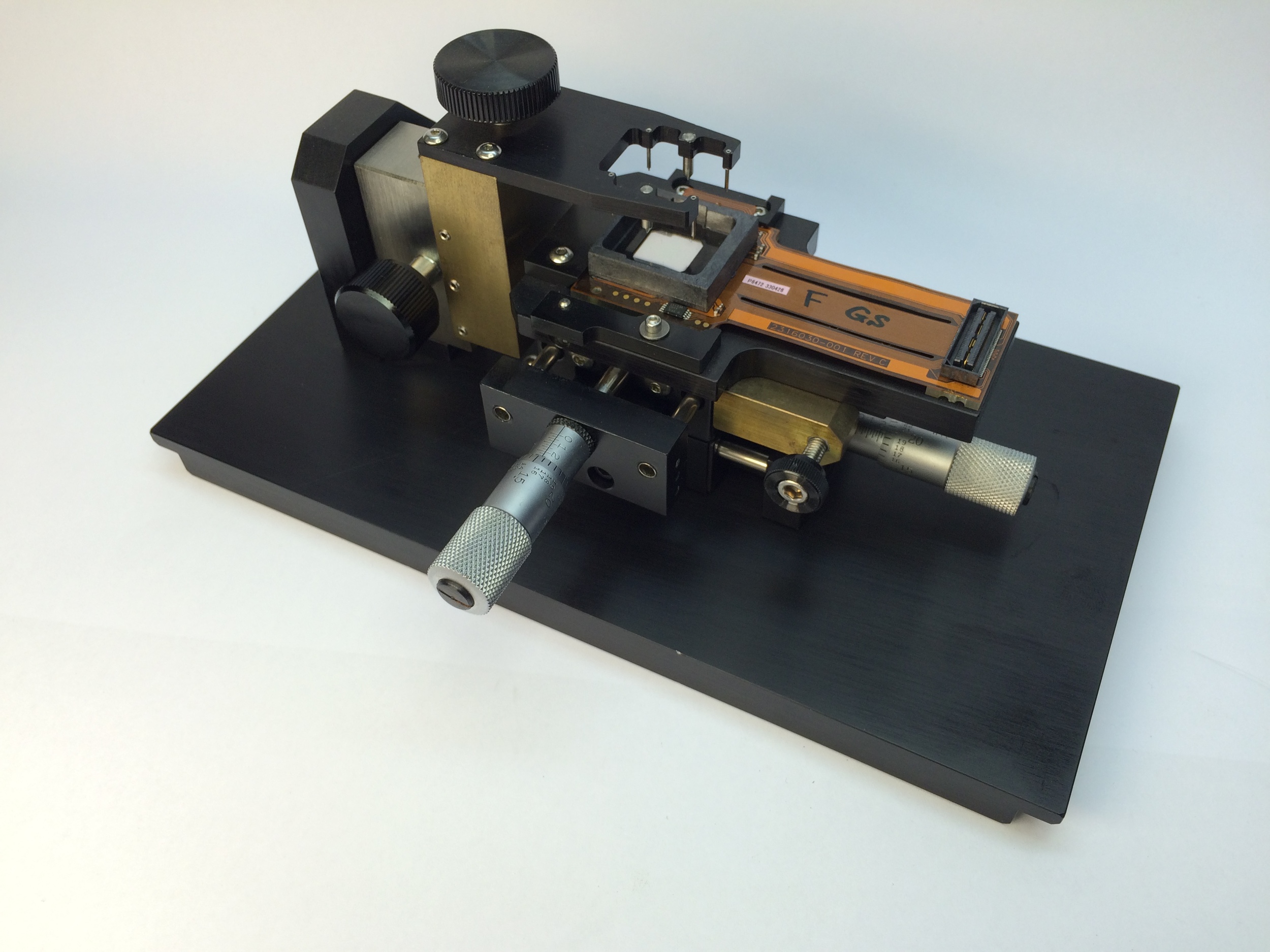

Precision X Y Positioning Base for High Power Video Microscope

Designed and built 4 units for high volume production line in Japan.

+

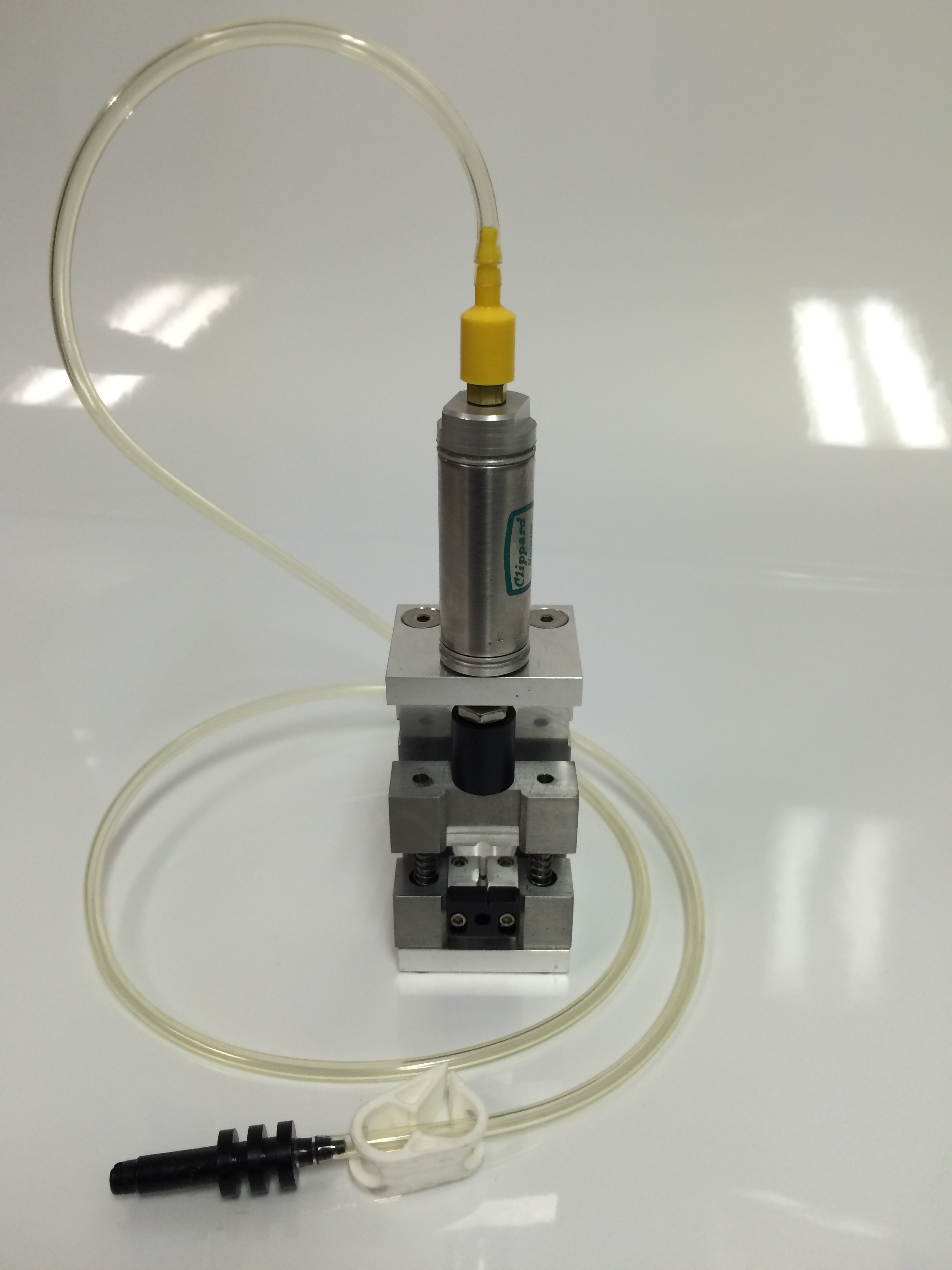

Pneumatic ring terminal forming tool

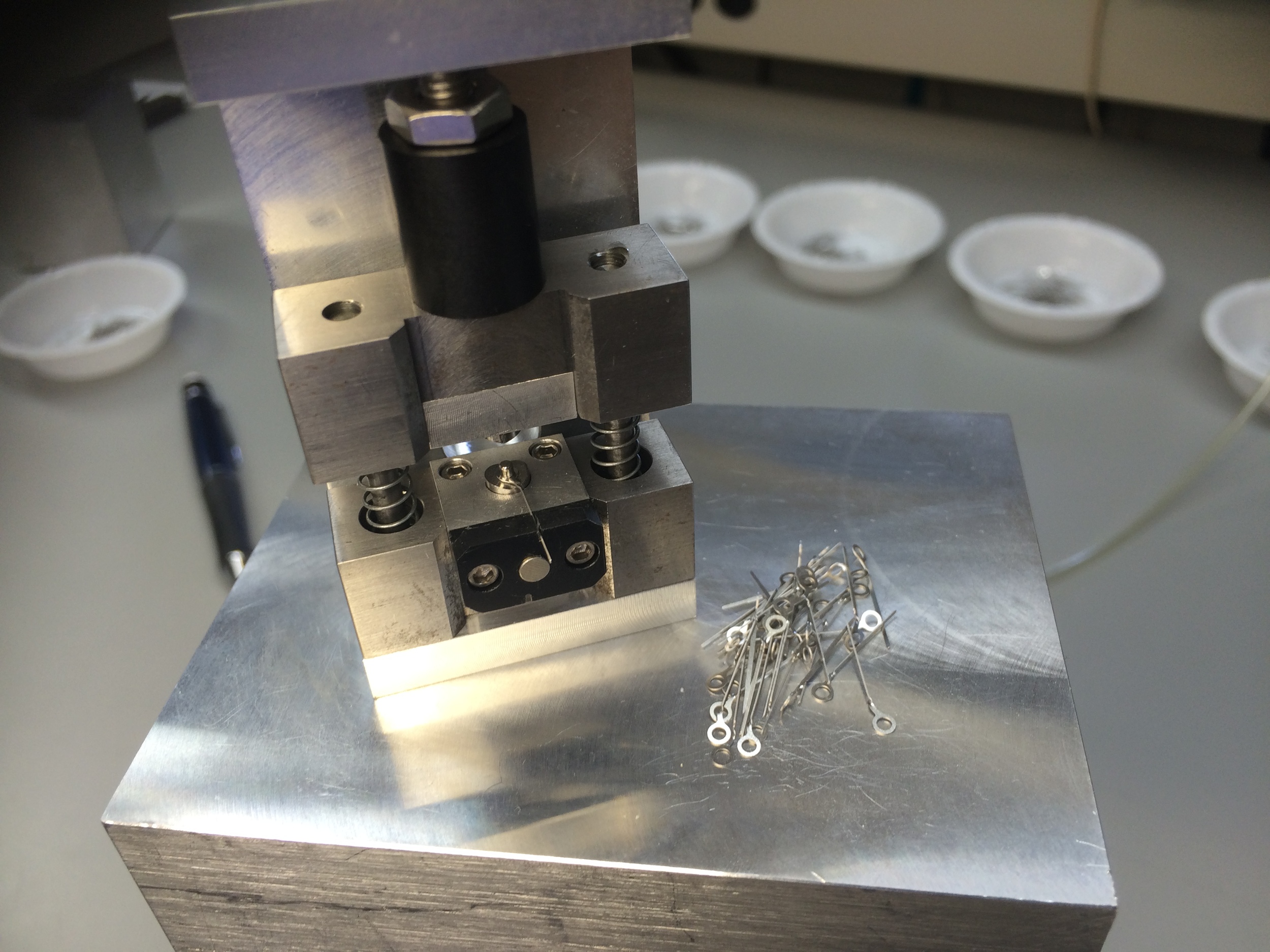

Designed and fabricated tool to form terminal ring into a Belleville washer shape. Tool design allows changing radius of curvature to adjust spring force of Belleville ring.

+

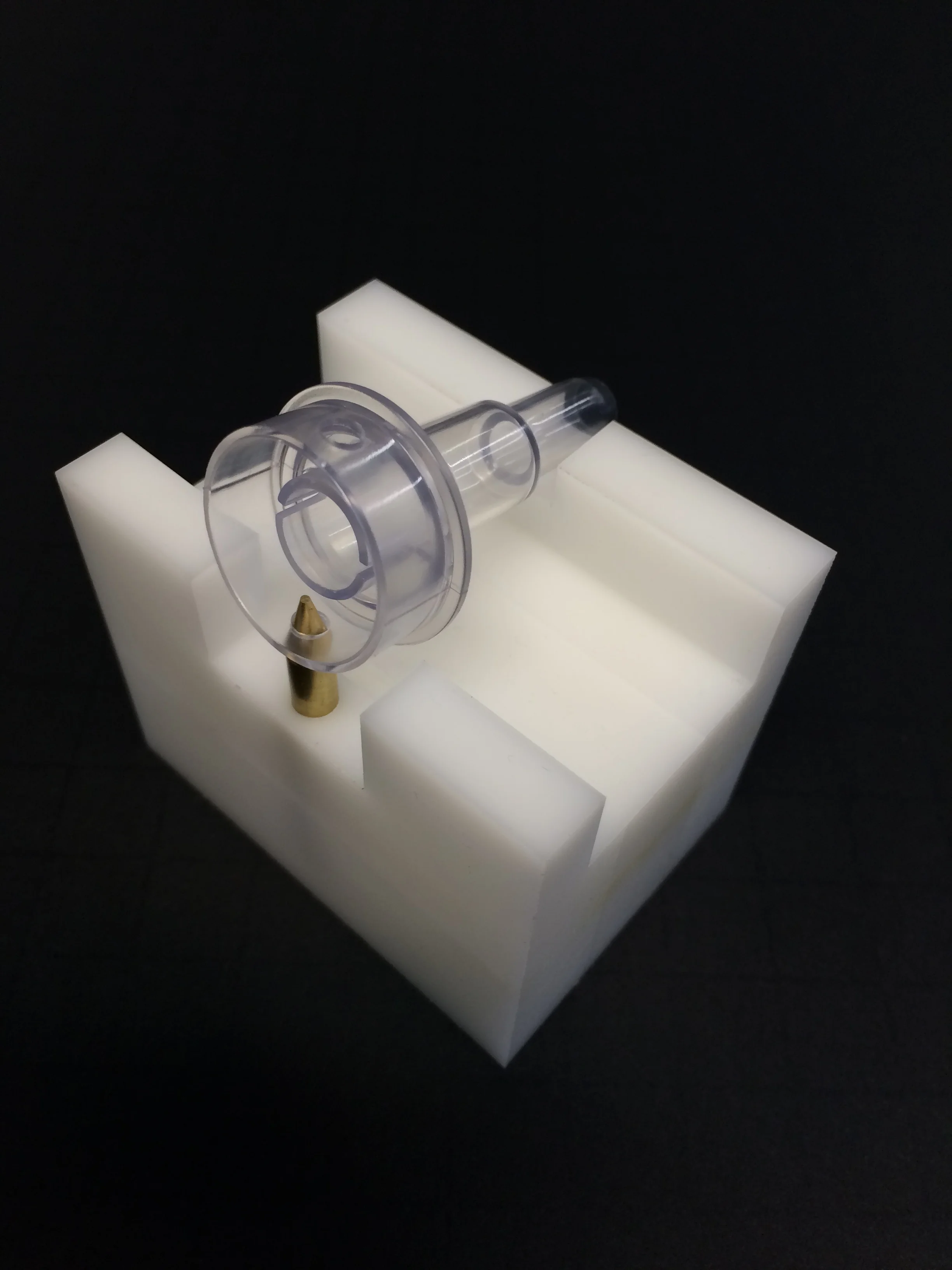

Precision Positioning Fixture

White Delrin and Brass

For Positioning similar devises with varying hole diameters for modification

+

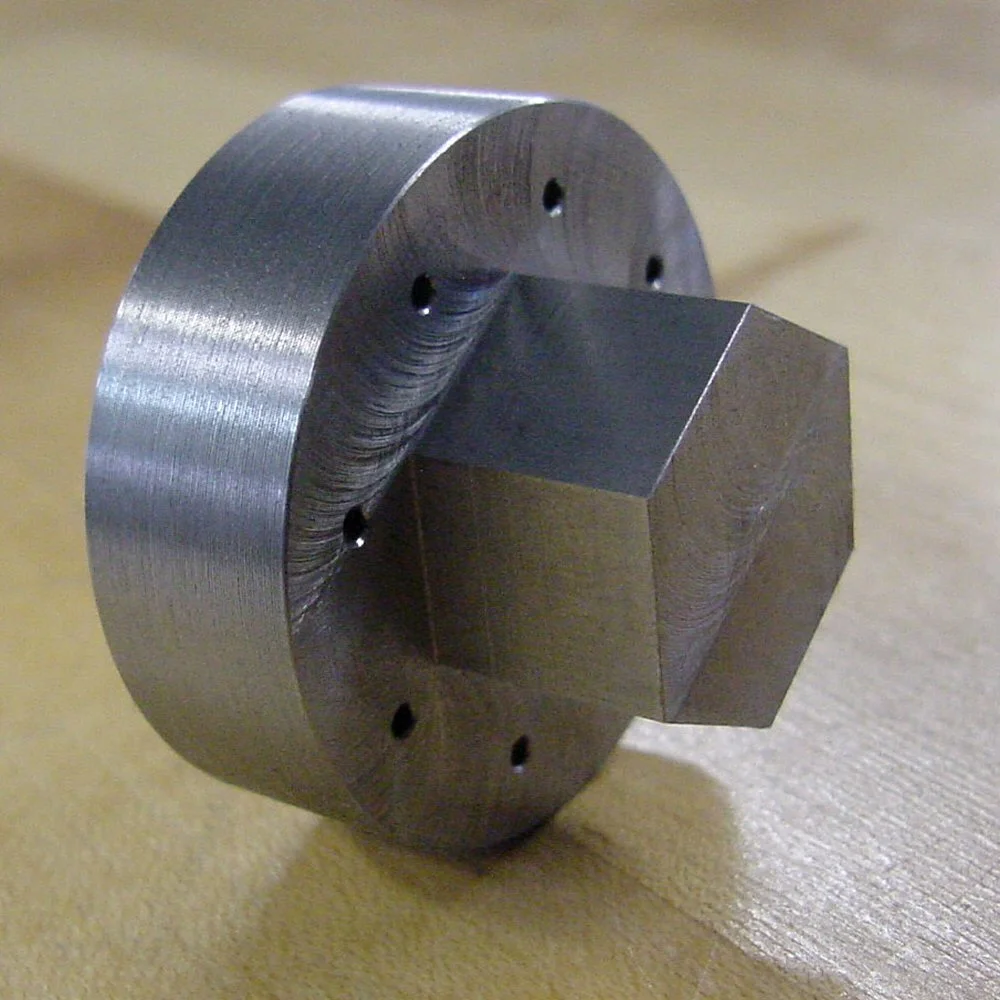

Special Disassembly Tool

4143 Steel

.75 inch Hex. 1.5 inch diameter .062 diameter holes
